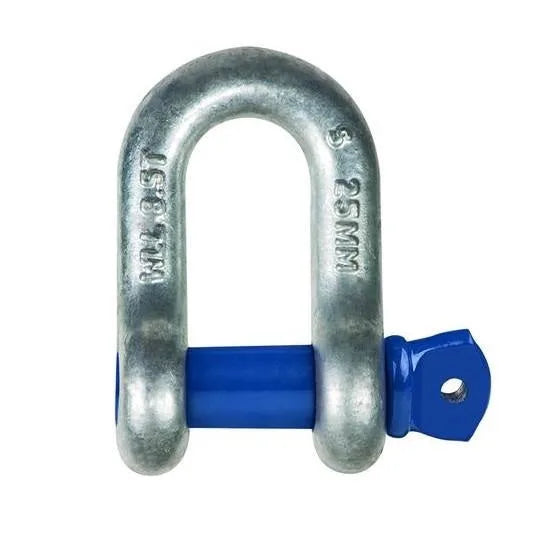

Austlift Dee Screw Type Shackles - Grade S - Various Sizes
Austlift Dee Screw Type Shackles - Grade S - Various Sizes
Part Number:
504006
Regular price
$3.98
Regular price
Sale price
$3.98
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
- D Screw type shackles
- Commonly used for lifting applications, providing connections to the chain, wire rope and other rated fittings.
- Conforms to AS2741
- Manufactured from Grade “S” material
- Hot dipped galvanized.
- Marked with:
- working load limit in tonnes,
- quality grade,
- batch numbered,
- nominal size in millimetre,
- supplier identification.
- Proof tested to 2 x working load limit, with a minimum break force of 6 x work load limit.
- Suitable for lifting applications.

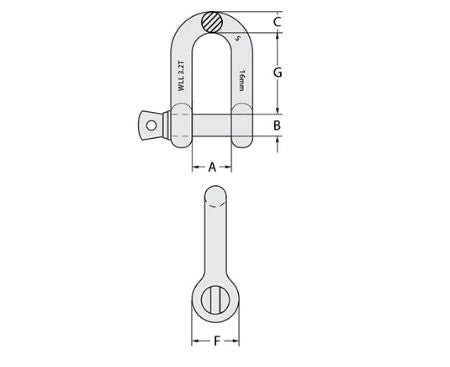

- Dimensions (mm):
- 504006 (6mm): A - 12 B - 8, C - 6 F - 17, G - 22
- 504010 (10mm): A - 17 B - 11, C - 10 F - 25, G - 32
- Note: Screw pin colour will mostly be blue but may be gold depending on availability. If a specific colour is required please get in touch with us!
