Air-Weigh QuickWeigh On-Board Scale Kit - QW2

• QuickWeigh^® is a digital PSI gauge designed specifically for air ride suspensions
• Can be calibrated to read weight of truck and/or trailer air suspensions
• Industry-leading accuracy to 99+% of dot certified scales
• High-precision pressure sensor measures fractions of one PSI
• Highly durable, easy-to-read digital display
• Overweight protection for air-ride suspensions
• True digital on-the-ground suspension weight, shown in real time

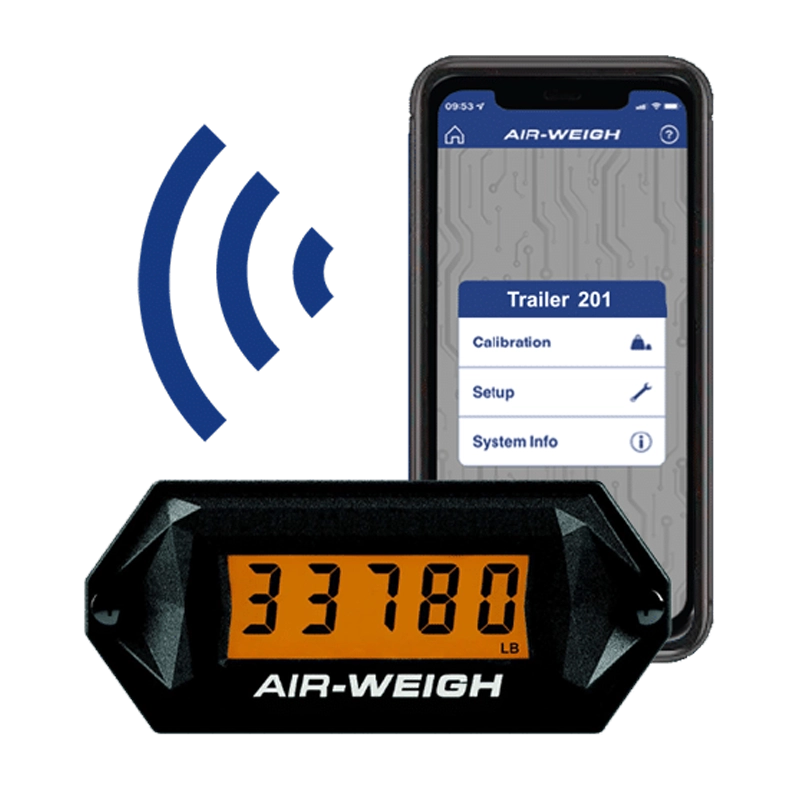

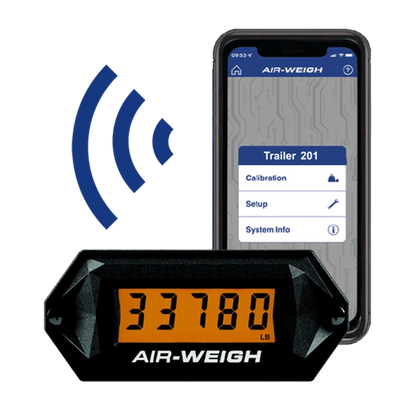

• Connect to IOS or Android smart device with free QuickWeigh^® App
• Dual point calibration (empty and heavy) for accuracy across the scale range
• PIN protection prevents tampering after calibration
• Hard-wire installation – always reliable, no batteries to change
• Automatically compensates for changes in temperature, altitude and humidity

Part Number QW2

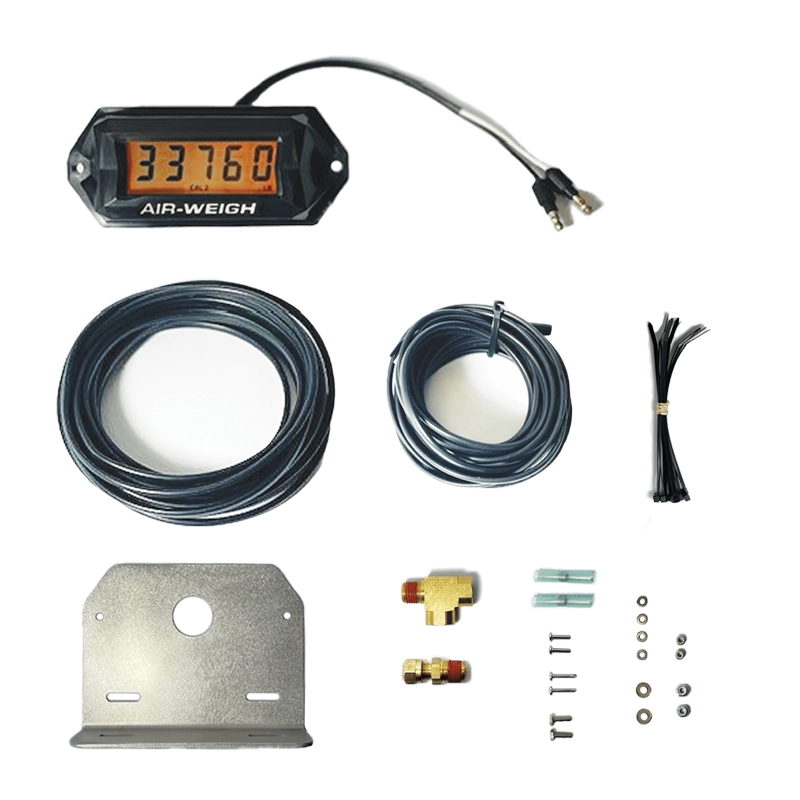

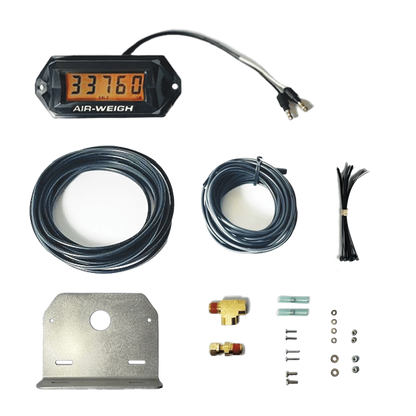

Includes:

• Air line
• Power extension cable
• Mounting bracket and hardware

Technical Specifications:

• For use with single height control (leveling) valves only
• Tested to stringent SAE standards and designed for exposure to salt and magnesium/calcium chlorides
• Operating Temperatures: -40^oF (-40^oC) To +185^oF (+85^oC)
• LCD Operating Temperature: -4^oF (-20^oC) To +185^oF (+85^oC)
• Units: Pounds or Kilograms – User selectable
• Display: Amber Backlight – Can be set to On or Off, visible in bright sunlight
• Communication range: Up to 30 meters line of sight
• Weight resolution: 20 Lbs or 10 Kgs
• Over-The-Air (OTA) Firmware Updates via QuickWeigh^® App
• Calibrates via iOS or Android Smart Device and free QuickWeigh^® App
• Backed by Limited 3-Year Warranty
• Voltage Range: 12-36 Volts
• Languages: English
• Designed & Manufactured in the USA with local Australian support.

View installation guide here.
